Merlin 2000S Panel (incl. Gas Pressure Transducer)

Panel Commercial Kitchen Protection Gas Pressure Proving Ventilation Interlock Monitor Up To 4 Fans External Gas Detector CO2 Monitor interface Gas Isolation
  • Merlin 2000S Panel (incl. Gas Pressure Transducer)

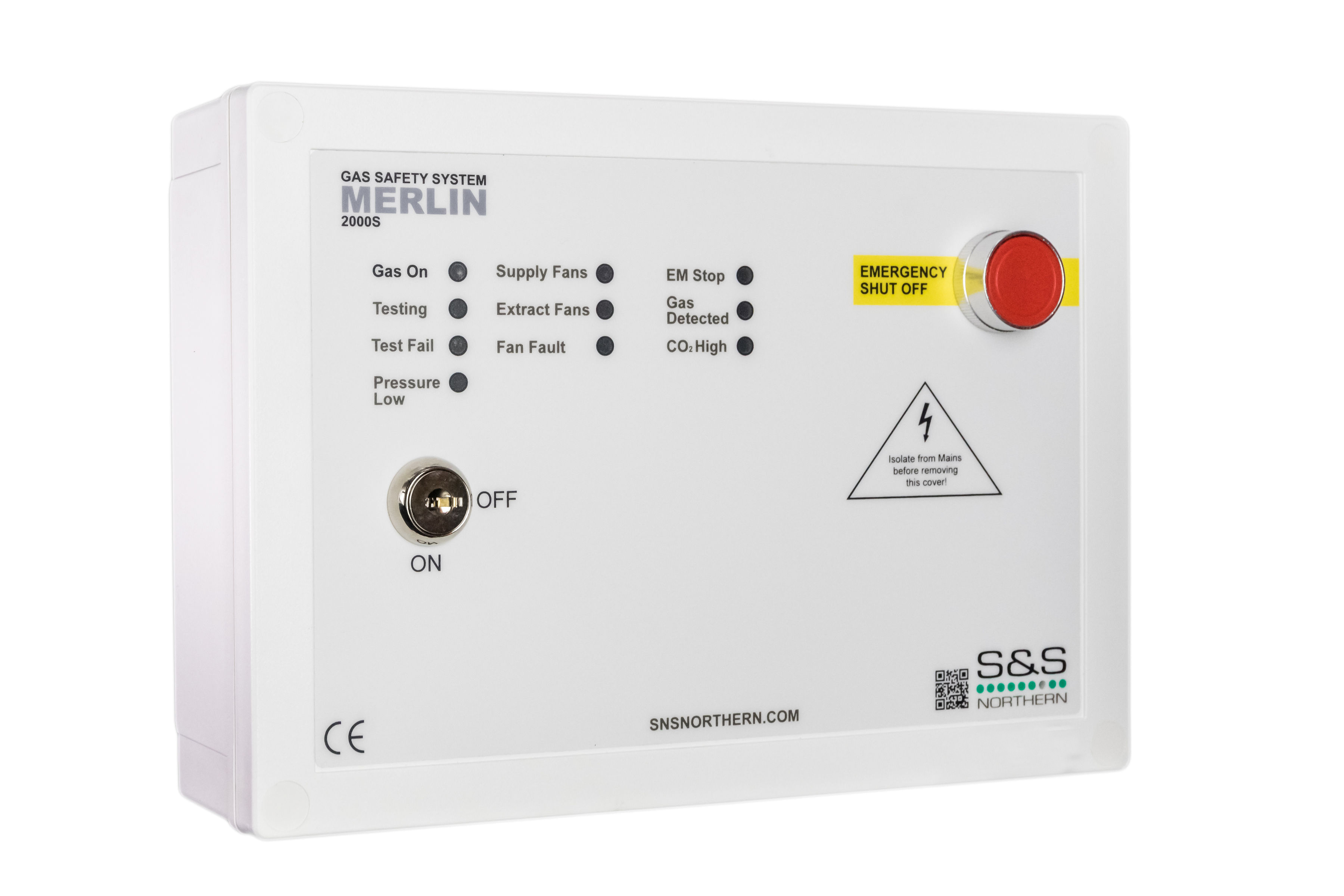

Merlin 2000S Panel (incl. Gas Pressure Transducer)

The Merlin 2000S ventilation interlock system is specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do not have flame failure devices fitted, therefore gas proving is a requirement.

The Merlin 2000S System acts as an interlock between the ventilation system and the gas solenoid valve. The system is compatible with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.

  • Gas Pressure Proving feature provides a tightness test on the pipework downstream of the gas valve
  • Ventilation interlock system which isolates the fuel supply if the ventilation fails
  • Monitor up to 4 extract or supply fans
  • System can be used with a variety of gas detectors
  • Is compatible with a CO2 Monitor
  • Gas Isolation
Width: 254mm
Height: 178mm
Depth: 62mm
  1. 2000S Technical.pdf Download
  2. 2000S BIM File.zip Download
  3. Commercial Kitchen Safety Solution.pdf Download
  4. 2000S Product Datasheet.pdf Download
  5. 2000S CAD File.dwg Download
