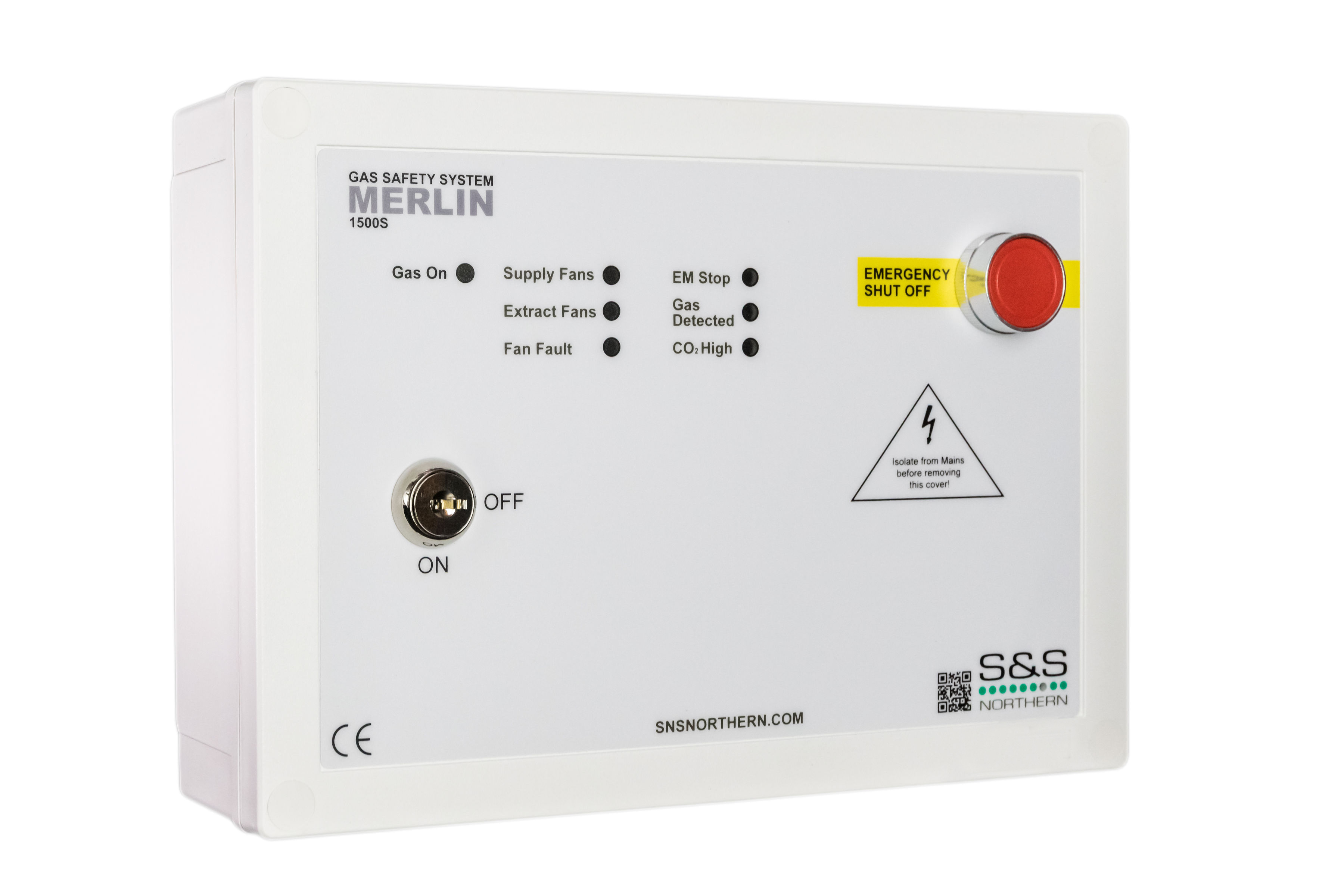

Merlin 1500S Interlock System
The Merlin 1500S ventilation interlock system is specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do have flame failure devices fitted, therefore gas proving is a not a requirement.
The Merlin 1500S System acts as an interlock between the ventilation system and the gas solenoid valve. The systems can work in conjunction with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.
- Ventilation interlock system which isolates the fuel supply if the ventilation fails
- Monitor up to 4 extract or supply fans
- System can be used with a variety of gas detectors
- Is compatible with a CO2 Monitor
- Gas Isolation
Height: 178mm
Depth: 62mm
Accessories
- CO2-X Carbon Dioxide Monitor
- Screwed 240V Goldseal Gas Solenoid Valve (Normally Closed)
- Flanged 240v Goldseal Gas Solenoid Valve (Normally Closed)
- Emergency Stop Button
- Air PD Switch (20-300PA)
- CS1 Current Monitor (1 X Fan Extract/Supply)
- CS2 Current Monitor (2 X Fan Extract/Supply)
- PM2+ Double Current Monitor
